Pressure loss in air pipe lines
Flow at normal pressure
m^3/s
m^3/min
m^3/hr
liter/min
liter/s
Supply pressure p1
Pa
kPa
MPa
bar
mbar
Tube length L
m
Tube diameter d
10
-3
m
Pressure drop dp
Pa
kPa
MPa
bar
mbar
Nomogram for lining diameters 3.2 - 60 mm

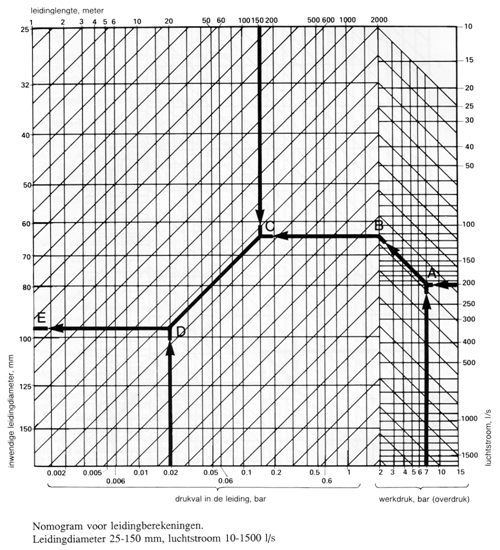

Nomogram for lining diameters 25 - 150 mm
